PIOMAS: Calculated thickness.

This post has been partially re-written as I posted an old version and editing would have made it a mess - I had changed my mind about a main conclusion (it is possible to get figures from calculated thickness that reflect real on the ice thickness) after referring to Schweiger et al and doing some more work on my spreadsheet. The portion that I've ended up editing is between the EDIT statements. I decided to pull the post and re-write as at the time I realised the problem only four people had opened this page. Apologies to those four people.

The calculated thickness is a useful metric, it allows some diagnosis of whether PIOMAS volume changes are due to changes in area or thickness, and changes in its annual cycle reflect changes that PIOMAS volume suggests are significant. But can the calculated thickness metric be used to say anything about real thickness on the ice pack?




Figure 4, figure 2 of Kwok & Rothrock 2009.

Figure 4 shows ice thickness obtained from upward looking submarine sonar (1988) and ICESat retrievals (2004-2008), in the Data Release Area (DRA) which covers the central Arctic off the Canadian Arctic Archipelago (CAA), more. Between those periods the sea ice thickness dropped substantially. In the Physics Today article from Kwok & Untersteiner there is a graphic perhaps better suited for seeing the drop.


Figure 5, figure 3 of Kwok & Untersteiner.

EDIT BEGINS
From this it can be seen that while there is a large drop between 1988 and the ICESat data, just under 1 metre, there is a further massive loss of around 0.75 meters during the ICESat mission (2004-2008). How does that compare with the PIOMAS calculated thickness? Figure 3 (see below) does show the changes in a qualitative sense, a drop between the 1980s and 1990s, with a larger drop between 2004 and 2007, however there is actually an increase in 2008 despite ICESat showing a substantial drop.


Figure 3, from previous post, 1979 to 2012 timeseries of calculated thickness using extent and area. Original size here.

Schweiger et al carried out validation against Kwok and Rothrock's work finding that in Autumn PIOMAS, using ice concentration and sea surface temperature assimilation, had a trend of -0.38m/decade, whereas Kwok & Rothrock had a trend of -0.50m/decade. However this validation was in the DRA and outside of that region there has been a lot of thinning of thick ice off the CAA (PIOMAS underestimates thick ice), while in the Siberian sector there has been an unknown change of what has always been relatively younger, hence thinner, ice due to the divergent effect of the transpolar drift (and PIOMAS overestimates the thickness of thin ice). So perhaps the discrepancy can be explained at least in a qualitative sense, indeed Schweiger et al conclude as much with respect to thickness trends.

Furthermore Schweiger et al carry out three runs with PIOMAS; the main one they concentrate on is that which assimilates both sea-ice concentration (IC) and Hadley sea surface temperature (SST), they also carry out runs without any assimilation and assimilating only sea-ice concentration. Within the DRA the latter two runs have substantially larger trends that more closely match Kwok's findings. So as noted by Schweiger the assimilation of both SST and IC produces a conservative result, and it's that version that's available at the PIOMAS website.

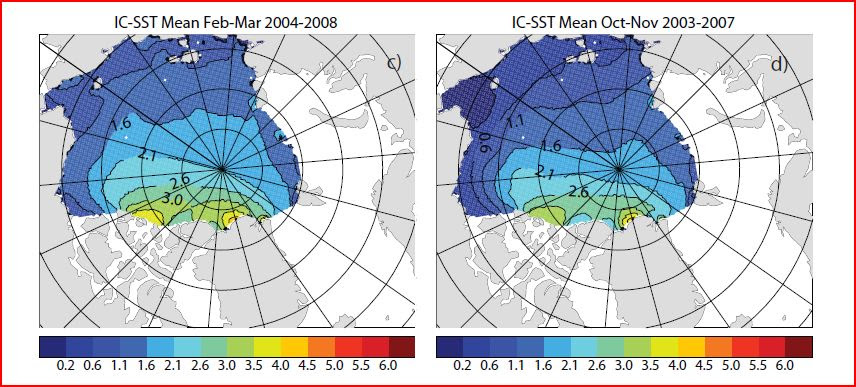

The following is from figure 6 of Schweiger et al:


From the spreadsheet I'm using the calculated average thicknesses are 1.75m for Feb & Mar 2004-2008 and 1.65m for Oct & Nov 2003-2007. These figures are in reasonable agreement with the PIOMAS results shown above, and the rest of figure 6, and text, shows that the PIOMAS result is somewhat thinner than the ICESat thickness fields for the same periods. So PIOMAS is producing reasonable fidelity to thickness. There's a paywall free copy of Schwieger et al at the end of this post.

However if we look at the PIOMAS thickness for the dates of the area minima of each year we get a larger thickness than may be expected.


Figure 6, PIOMAS volume and thickness calculated from area at the annual minima dates for sea-ice area 1979 to 2011. Left axis is thickness, right is volume (1000km^3).

In Kwok & Untersteiner the thickness loss between 1980 and 2000 is around 1 metre. Over the same period the calculated thickness loss is around 0.5m. This is probably because when the sea-ice is at its minima, particularly in recent years, its thickness is biassed upwards by the thicker ice off the CAA, which occupies a proportionately larger surface area as the overall Arctic sea-ice area decreases. This is probably the main reason for the lack of thinning in figure 3.
EDIT ENDS

After 2008 figure 3 shows a significant drop in calculated thickness for both area and extent. Over this period there are no published widespread observations. We are left with small scale snapshots, such as the Alfred Wegener Institute (AWI) flights, which show substantial losses of thickness over the CAA, more. This observation could be construed as part of the process of rapid thinning of thicker ice. CRYOSAT's initial release image at the Paris Airshow seems to be overly thick (around 3m thick in February) given the past observations from the DRA and ICESat. Although I understand* that that image was pre-validation and that the Alfred Wegener Institute flights were part of the Crysat validation effort. Validation being the cross checking of a new measurement system with measurements carried out using existing tried and tested methods. *I can't find the link for the source at present.

What then does all this mean for the recent massive volume loss suggested by PIOMAS and the thickness implications of that loss when viewed from the areal minima of recent years? We lack direct observations precisely when they are most needed. Cryosat is the only largescale option and it's initial unvalidated results do not agree with the DRA data, ICESat and the Alfred Wegener Institute flights: If Cryosat is correct then the sea-ice has gained substantially in thickness and the PIOMAS trend and behaviour of the ice pack suggest that this is not the case. So at present all we have is PIOMAS, and we know that interpreting that in a quantitative sense needs to be approached with caution. However if, as Schweiger et al advise regarding thickness, we resort to a qualitative assessment the results are difficult as well. Thickness calculated at minima suggests a further loss of almost a meter in the years after Kwok's ICESat results. Proportionately bringing the 1m thickness during Autumn at the end of ICESat down to a figure substantially less than 1m, this is obviously nonsense. This can be explained by the biassing effect of reduced overall area increasing the proportionate contribution of thick ice off the CAA. If that is correct then the loss of volume may in large part be due to thinning of the ice off, and within the CAA, which would tally with the AWI flight results.

Furthermore there is the issue that in 2008 there is an uptick in calculated PIOMAS thickness, while ICESat shows a drop. As I have been arguing about the significance of 2 years, actually 2010 followed by aftermath in 2011, such a significant 1 year deviation between PIOMAS and ICESat needs to be addressed. It is significant that the volume anomaly for 2008 is relatively flat, and that the uptick is strongest in area calculated thickness, extent calculated thickness being unremarkable. Neven shows that 2008 was a year with high levels of surface melt ponds, and area calculations are prone to reading surface melt as open ocean, with a low area and steady volume implying an increase in thickness to 'compensate': Such a false reduction in area due to melt ponds could easily account for the uptick in 2008's area calculated extent.

With regards the massive volume loss in the last two Springs, 2010 & 2011: PIOMAS shows substantial negative volume anomalies, these are supported by the change in the seasonal calculated thickness cycle. Whilst calculated thickness may not be able to tell us about regional thickness it can tell us whether volume changes are accounted for by change in area/extent or implied thickness, and the recent Spring volume losses cannot be accounted for by changes in area/extent. So it seems reasonable to conclude that the volume losses of the last two years are a due to thinning of the ice pack, not an area loss. As argued previously, the loss of volume in Spring 2010 seems to be associated with weather conducive to melt. However as far as I can see this does not seem to be the case with 2011, which begs the question; why was there volume loss in Spring 2011?


Which brings me to my closing point on this matter.

Over at Neven's Sea Ice Blog, a graph was posted yesterday, see the coloured graph, second down, click on it to enlarge. The graph is by Wipneus and shows the expected volume (based on extrapolation of an exponential fit) for each day of the last 2 years, and 2012 so far. Looking at 2010 it is clear that the deviation below the expected volume begins in Spring 2010, which is what I've been arguing. 2011 shows that the deviation below the expected trend continues from 2010 through the Winter and persists until the volume minima, after which the volume catches up with the trend. 2012 so far shows the volume running above the expected, with the difference between the two closing.

I still don't like extrapolation to zero, even Maslowski in his extrapolation to zero trends still indicates an unknown amount of sea-ice surviving, pdf. However for the purposes of this argument I'll put aside my doubts and use the exponential trend: If we take the trend that Wipneus is extrapolating from as the trend due to the process's involved in the long term loss of volume, then we may be able to see if the volume loss of 2010 is an unrelated 'blip' due to weather forcing, with 2010 being its aftermath.

What I'm thinking is this:

1) 2012 does not see substantial Spring volume losses - this means 2010's volume loss was a 'blip' and we're still on trend. Which means I'll be veering back to my opinion that the extrapolation of trend to zero isn't strong evidence of a seasonally sea-ice free state this decade.

2) 2012 does see substantial Spring volume losses - this means while 2010 was volume driven it has tipped the sea-ice into a new faster trajectory. i.e. something radical and significant is now happening in the Spring which hasn't happened before, and this has put us on a new more rapid downward volume trajectory.

Obviously if Summer 2012 were to see a repeat of the weather of 2007 accompanied by massive volume losses that would not support option 2, it would just be another extraneous factor as in option 1. Although as the Arctic Dipole seems to have had a hand in both 2010 and 2007, whether or not such events are extraneous to the process of Arctic climate change is dubious, that said it would not mean a new factor was at play losing volume in Spring.

Now it's just a matter of waiting to see what this Spring brings.

PS.

While coming home on the bus tonight a thought struck me - from the above it could be taken that PIOMAS only assimilates IC & SST. To be clear I quote from Schweiger et al:

"Daily mean NCEP/NCAR reanalysis data are used as atmospheric forcing, i.e., 10-m surface winds, 2-m surface air temperature (SAT), specific humidity, precipitation, evaporation, downwelling longwave radiation, sea level pressure, and cloud fraction. Cloud fraction is used to calculate downwelling shortwave radiation following Parkinson and Washington [1979]."

So whilst the input of sea-ice observations is limited to SST and IC, the observed behaviour of the atmosphere is included by default, this is why I see the observations of 2010 and 2011 as important an real.

Data sources:

PIOMAS Volume.
http://psc.apl.washington.edu/wordpress/research/projects/arctic-sea-ice-volume-anomaly/
CT Area.
http://arctic.atmos.uiuc.edu/cryosphere/timeseries.anom.1979-2008
Crandles Extent.
https://docs.google.com/spreadsheet/ccc?key=0AjpGniYbi4andElTczhVS2t2VW5Ka0sySnFrcndTTkE#gid=0


Papers:

Kwok & Rothrock, 2009, Kwok & Rothrock, 2009, "Decline in Arctic sea ice thickness from submarine and ICESat records: 1958–2008." GRL.
http://rkwok.jpl.nasa.gov/publications/Kwok.2009.GRL.pdf

Kwok & Untersteiner, 2011, article from Physics Today.
http://rkwok.jpl.nasa.gov/publications/Kwok.2011.PTO.pdf

Schweiger et al, 2011, Uncertainty in modeled Arctic sea ice volume.
http://psc.apl.washington.edu/wordpress/wp-content/uploads/schweiger/pubs/IceVolume-2011-06-02-accepted-with-figures.pdf
